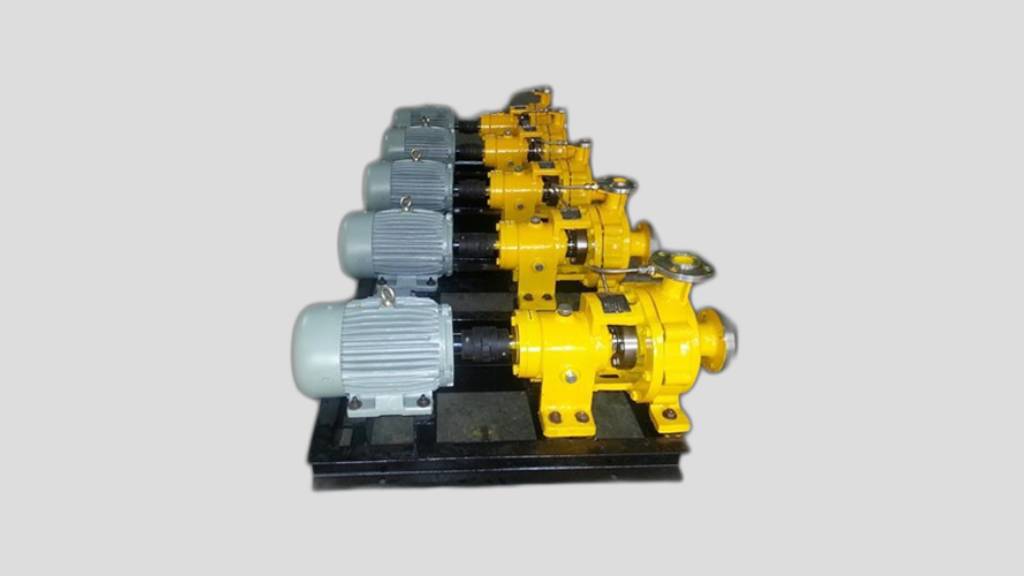

Chemical Process Pumps
Product Description:
We are offering Centrifugal Pumps, which is available in back pull- Out construction, horizontal foot mounted single stage, end suction and top centerline discharge.
Features :
- More than 3mm corrosion allowance (cast iron) for extended use on corrosive applications.
- Back-pull-out construction allows rotating assembly to be with drawn without disturbing the suction and delivery connections.
- one piece self vented foot mounted, center suction volute casting, single stage, closed / semi open dynamically balanced impeller.
- Flange drilling standards as per DIN 24255 / ISO 2858 or as per customer's requirement.
- Designed for 16 bar working pressure with optional casing for a working pressure of up to 20 bar.
- A robust and solid construction that guarantees long life even under high suction pressure conditions.
- Heavy-duty, deep-grooved bearings with minimum 50,000 hours operating life under normal condition. (Grease lubricated, oil lubrication available on request).
- Heavy-duty, stiff solid shaft design with low L3/D4 ratio ensures less than 0.05mm shaft deflection at the seal face in all operating condition. This extends the seal life.
- Seal housing is constructed to accommodate different seal/gland designs, so as to meet the severe heavy-duty requirements. ( standard is gland packing , seal version on special request).
- Excellent parts interchangeability reduces inventory levels for spare parts to a minimum.
- Special design for high temperature thermic fluid available in request.
- Motor or engine driven sets.
- Special monobloc versions available on request.
Applications :
- Chemical Process Industries
- Fertilizer Plants
- Bulk Drugs and Pharmaceutical
- Heating and Air Conditioning Plants
- Sugar Plant
- Water Supply
- Pulp and Paper
- Cement
- Agriculture Textile
- Jet Dyeing
